ESMIL Grit Washer

Grit washer

Categories: Grit & Grease Separation and Treatment

Grit washer – high-efficiency equipment for washing grit and grit slurry from organic contaminants.

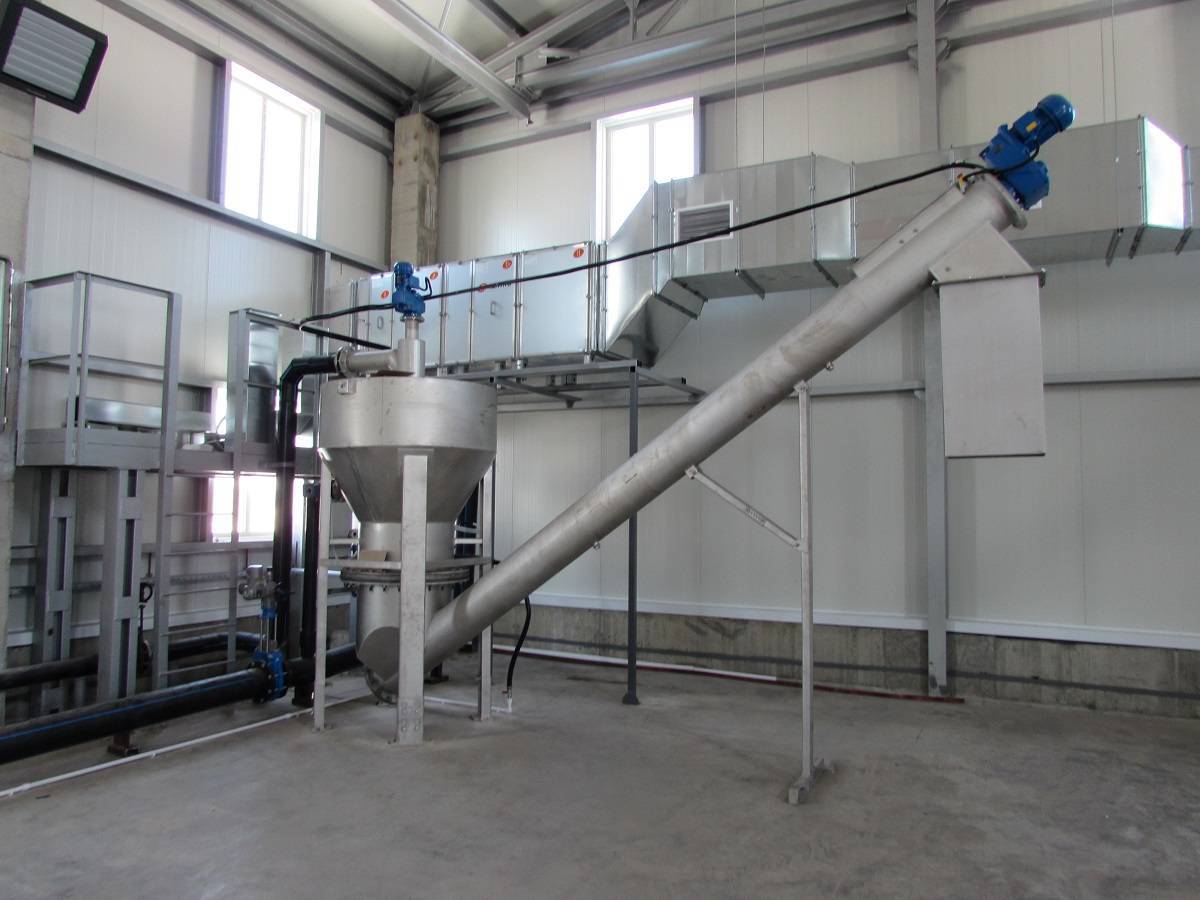

Esmil Grit washer is a high-efficiency equipment for washing grit and grit slurry from organic contaminants.

Field of application

Washing and dewatering of grit slurry after horizontal or aerated grit traps.
Processing of partially dewatered (dry or wet) grit, for example, after M-Comb type installations.
Processing and dewatering of surface runoff sludge and sludge generated from road cleaning.
Separation and dewatering of grit slurry generated in snow melting installations.
Processing and dewatering of grit slurry from hydro-transport systems in food and processing industries.

Final product:
Washed and dewatered grit, wash water, and a liquid layer of organic contaminants, which are periodically discharged from the installation.

Efficiency, reliability, and ease of operation of grit washing installations

Washing device for uniform distribution of water across the working chamber for washing grit from organic substances.
Use of reinforced screw spirals.
Compact modular design, especially important when installing equipment in existing buildings and structures.
Low-speed conveyor that ensures efficient dewatering of the output grit and extends the service life of the equipment.
Capability to process grit slurry and partially dewatered grit.
To ensure maximum washing efficiency and grit separation, the design of the chamber and mixer geometry is calculated using hydraulic flow simulation systems.
Adjustable supports to level surface irregularities where the equipment is to be installed.
Simplified assembly and disassembly of the equipment, with conveniently placed inspection covers for viewing the internal components of the grit trap.
Accessibility of all components for maintenance.
Absence of bearings in the submerged part to simplify maintenance.
The closed design of the grit trap minimizes the spread of unpleasant odors and gases.
Availability of normal operation and emergency situation alarms.
Synchronization with other equipment in the complex, with convenient and intuitive control mode settings via the operator panel.
Electrical protection against overloads of drives.
Electrical protection against voltage fluctuations.
Flange for connecting bypass pipelines (optional).
Outdoor version (optional).

Durability of ESMIL Grit Washer

The grit washing devices are made of stainless steel AISI 304 or AISI 316.
The screw mechanism uses wear-resistant guides made from “Hardox” steel – a material with high resistance to abrasive wear. It is commonly used for manufacturing products and structures exposed to wear, which significantly extends the service life of the products.
The axial screw conveyor is made from high-strength steel.
Corrosion protection in the form of volumetric etching and passivation with special agents.
The use of modern manufacturing technologies for joining the body and mechanism components.

Optional

Equipment casing made of AISI 316.
Conveyor spiral made of AISI 304 or AISI 316.
Hermetic connection with the conveyor.
Options for custom automation.

Technical specifications of Grit Washer

Nominal capacity, m³/h.	28 – 90
Nominal capacity for sand slurry, kg/s.	8 – 25
Nominal capacity for sand, t/h.	0,3 – 1,8
Amount of wash water, m³/h.	1,5 – 9
Wash water pressure, bar.	2 – 3
Efficiency for the 0.2 mm fraction, %.	up to 94

Grit washing installations are made of stainless steel and polymer materials. The equipment size is selected depending on the required capacity and the properties of the slurry being processed. The data for selecting the equipment is provided by the customer or the design organization in the questionnaire.

Are there options for protecting equipment during operation in adverse climatic or other conditions? We can offer a higher level of protection for electrical equipment – above IP55. It is also possible to manufacture the equipment in an explosion-proof version. Can the equipment be used outside of existing or specially prepared premises? As an option, the grit washing installations can be made in an outdoor version.
